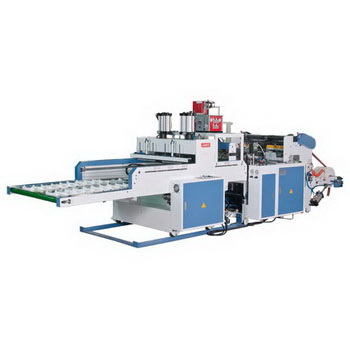

Shopping Bag Making Machine GF-JD32E-SVP

gf-jd32e-svp


GF-JD32E-SVP

Finished Products

Heat-heating ( Find machine from bag )

  • no 28 1687225469
  • no 29 934958252
no 28 1687225469 no 29 934958252
SERVO DRIVE HEAT-CUTTING TYPE FULLY AUTOMATIC T-SHIRT BAG MAKING MACHINE
MODEL GF-J20E/SVP GF-J24E/SVP GF-JD32E/SVP GF-JD40E/SVP
MAX. CUTTING WIDTH 500mm 600mm 350mm X 2 lines 400mm x 2 lines
MAX. CUTTING LENGTH 650mm 650mm 650mm 650mm
FILM THICKNESS 0.01 ~ 0.04mm
LENGTH TOLERANCE +/-1mm
PRODUCTION CAPACITY PER CYCLE MAX.200 pcs/min
UNWINIDING STAND Pneumatic lifting , jumbo roll stand
SEALING KNIFE Tensionless sealing type
CUTTING KNIFE Heating-cutting type
SEALING BASE Flat base
TEMPERATURE CONTROLLER 2 sets (seal * 1, bottom * 1) 3 sets (seal * 2, bottom * 1)
PRINTING SCANNER 1 set
SAFETY ALARMSYSTEM With electronic operating sequence indicator
CONTROL PANEL 1 set HMI control
DRIVING MOTOR A.C. motor with inverter control
HEATING CAPACITY 3.0kw 4.5kw 4.9kw       5.3kw
BAG LENGTH ADJUSTMENT Servo drive system
BAG OUT-FEEDING Rubber roller with air blowing system
CENTER BLOCK HOT PIN 1 set 2 sets
PUNCHING  UNIT 1 set/1 punch 1 set / 2 punch
OPTIONS :
In-line control system, for non-stop production with blown film (inflation) machine (patent pending)
Crusher for die-cut & On-line re-used system (save 8-12%)
* Specifications could be changed on your request or for improvement, contact us for more details
