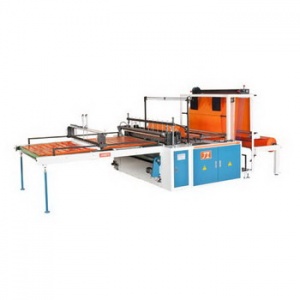

Tensionless Bag Making Machine GF-F1200E/SV

gf-f1200e-sv


GF-F1200E/SV

Finished Products

Knife Cutting / Bottom Sealing Bag ( Find machine from bag )

no 1 116161016
no 2 619208083
no 3 1578013690
no 4 2012034838
no 10 1826725665
no 1 116161016 no 2 619208083 no 3 1578013690 no 4 2012034838 no 10 1826725665
MODEL GF-F611E/SV GF-F811E/SV GF-F1011E/SV GF-F1211E/SV GF-F1511E/SV
MAX. CUTTING WIDTH 600mm x 1 line 800mm x 1 line 1000mm x 1 line 1200mm x 1 line 1400mm x 1line
MAX. CUTTING LENGTH 1000mm or extra length by option
FILM THICKNESS 0.025 ~ 0.2mm
LENGTH TOLERANCE +/-1mm
MAX. PRODUCTION CAPACITY PER CYCLE 120 pcs/min 120 pcs/min 90 pcs/min 70 pcs/min 60 pcs/min
UNWINDING STAND Simple unwind stand
SEALING KNIFE Tensionless sealing type
CUTTING KNIFE Knife-cutting type
SEALING BASE Silicon roller or Silicon strip x 1 set
TEMPERATURE CONTROLLER 2 sets
PRINTING SCANNER 1 set
SAFETY ALARM SYSTEM With electronic operating sequence indicator
CONTROL PANEL 1 set, Digit control
DRIVING MOTOR A.C. motor with inverter control
HEATING CAPACITY 4.2kw 4.6kw 5.7kw 7.4kw 8.2kw
BAG LENGTH ADJUSTMENT Servo drive system
BAG OUT-FEEDING Rubber roller with springs
COLLECTING UNIT Collecting table
OPTIONS Hot Pin, Conveyor , Manual punching device
* Specifications could be changed on your request or for improvement, contact us for more details.
