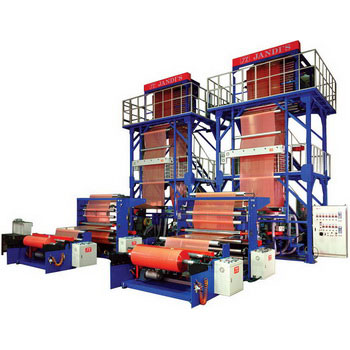

2 Layer Co-Extrusion Inflation Machine GF-L2C-65D

gf-l2c-65d


GF-L2C-65D
TWO-LAYER A-B CO-EXTRUSION FILM INFLATION MACHINE
  MODEL GF-E2C-45D GF-E2C-50D GF-E2C-55D GF-E2C-65D
FEATURE MATERIAL TO BE USED HD/LD /LLDPE (To be specified by buyer)
MAX. FILM WIDTH
800mm
1200 mm
1600mm
2200mm
FILM THICKNESS
0.020 ~ 0.20mm
0.020 ~ 0.20mm
0.020 ~ 0.20mm
0.020 ~ 0.20mm
LAYER RATIO
1:1 TO 1:3
1:1 TO 1:3
1:1 TO 1:3
1:1 TO 1:3
MAX. EXTRUSION CAPACITY 80kg/hr for 1:1
60kg/hr for 1:2
53kg/hr for 1:3
120kg/hr for 1:1
90kg/hr for 1:2
60kg/hr for 1:3
160kg/hr for 1:1
120kg/hr for 1:2
106kg/hr for 1:3
280kg/hr for 1:1
210kg/hr for 1:2
186kg/hr for 1:3
REAL PRODUCTION OUTPUT
REAL PRODUCTION OUTPUT DEPENDS ON THE MATERIAL, FILM SIZE, OPERATION CONDITIONS, SKILL & EXPERIENCE
EXTRUDER
(TWO SETS)
SCREW DIAMETER
ψ45mm x 2
ψ50mm x 2
ψ55mm x 2
ψ65mm x 2
DRIVING MOTOR
20HP X 2
25HP x 2
40HP x 2
60HP x 2
BLOWN FILM DIES
ψ175mm
ψ250mm
ψ350mm
ψ450mm
CONTROL PANEL TYPE
INDEPENDENT TYPE SWITCH BOARD (BOX)
TEMP. CONTROL
PID TEMP. CONTROLLERS, COLD-START PROTECTION
COOLING UNIT TYPE
EXTERNAL AIR COOLING TYPE, BY DUALLIP AIR RING
AIR BLOWER
5HP
7.5HP
10HP
20HP
TAKE-UP UNIT FIXED TYPE, HEIGHT
5 .5M
6.5 M
8 M
12 M
TAKE UP ROLLER
900mm
1300mm
1700mm
2300mm
TAKE UP MOTOR
1/2HP
1HP
2HP
3HP
TAKE-UP SPEED
MAX. 60M/min or TO BE SPECIFIED BY BUYER
BUBBLE GUIDE
CAGE TYPE, BY MANUAL or MOTOR DRIVE
STEADY PLATE
MANUAL/MOTOR DRIVEN TYPE,MADE OF ALUMINUM ROLLERS
GUSSET BOARD
OPTIONS,PLEASE SPECIFY MAX. GUSSET DEPTH REQUIRED
GUIDE UNIT
BY TORQUE MOTOR or AC MOTOR + INVERTER
WINDING UNIT TYPE
SINGLE/TWO STATION SURFACE WINDER or BOBBIN WINDER or SCGC (SURFACE/ CONTACT/ AP/CENTRAL) 4-IN-1 WINDER
BOBBIN CHANGE
PNEUMATIC SYSTEM or MANUAL TYPE
FILM CUTTING
PNEUMATIC SYSTEM or MANUAL TYPE
EFFECTIVE WIDTH
800mm
1200 mm
1600mm
2200mm
WOUND-UP DIA
Max. 800mm or TO BE SPECIFIED BY BUYER
WINDING MOTOR
1/2HP
1HP
2HP
3HP
OPTIONS GRAVIMETRIC DOSING UNIT, AUTO HOPPER LOADER, SATURN AIRRING, PRESSURE & MELTING TEMP GAUGE, THICKNESS MEASUREMENT, AUTO THICKNESS CONTROL,EXTRUSION CONTROL,WIDTH CONTROLLER,INTERNAL BUBBLE COOLING (IBC), VERTICAL TYPE OSCILLATING TAKE UP UNIT, CORONA TREATER, HEAT-SLITTING UNIT, 6” AIR SHAFTS, EDGE POSITION CONTROL (EPC), CENTER POSITION CONTROL(CPC), AUTO. TENSION CONTROL, HYDRAULIC UNLOADING UNIT, AIR CHILLING SYSTEM ….etc.
REMARKS Final specifications of the co-extrusion machine depend on the film application, material to be used, accepted thickness tolerance, and your special requirements..



TWO-LAYER A-B CO-EXTRUSION FILM INFLATION MACHINE

MODEL
GF-E2C-35-45
GF-E2C-45-55
GF-E2C-55-65
FEATURE MATERIAL TO BE USED
MAX. FILM WIDTH
700 mm
1300mm
1800mm
FILM THICKNESS
0.020 ~ 0.20mm
0.020 ~ 0.20mm
0.020 ~ 0.20mm
LAYER RATIO
1:1 TO 1:3
1:1 TO 1:3
1:1 TO 1:3
MAX. EXTRUSION CAPACITY
48kg/hr for 1:1
60kg/hr for 1:2
53kg/hr for 1:3
80kg/hr for 1:1
120kg/hr for 1:2
106kg/hr for 1:3
160kg/hr for 1:1
210kg/hr for 1:2
186kghr for 1:3
REAL PRODUCTION OUTPUT
REAL PRODUCTION OUTPUT DEPENDS ON THE MATERIAL, FILM SIZE, OPERATION CONDITIONS, SKILL & EXPERIENCE
EXTRUDER
(TWO SETS)
SCREW DIAMETE R
A : ψ35mm x 1
B : ψ45mm x 1
A : ψ45mm x 1
B : ψ55mm x 1
A : ψ55mm x 1
B : ψ65mm x 1
DRIVING MOTOR
A : 10HP x 1
B : 20HP x 1
A : 20HP x 1
B : 40HP x 1
A : 40HP x 1
B : 60HP x 1
BLOWN FILM DIES
ψ175mm
ψ275mm
ψ375mm
CONTROL PANEL TYPE
INDEPENDENT TYPE SWITCH BOARD (BOX)
TEMP. CONTROL
PID TEMPERATURE CONTROLLERS, COLD-START PROTECTION
COOLING UNIT TYPE
EXTERNAL AIR COOLING TYPE, BY DUALLIP AIR RING
AIR BLOWER
5HP
7.5HP
15HP
TAKE-UP UNIT FIXED TYPE, HEIGHT
4.5 M
6.5 M
9.5 METERS
TAKE UP ROLLER
800mm
1400mm
1900mm
TAKE UP MOTOR
1/2HP
1HP
2HP
TAKE-UP SPEED
MAX. 60M/min or TO BE SPECIFIED BY BUYER
BUBBLE GUIDE
CAGE TYPE, BY MANUAL or MOTOR DRIVE
STEADY PLATE
MANUAL or MOTOR DRIVEN TYPE , MADE OF ALUMINUM ROLLERS
GUSSET BOARD
OPTIONS, PLEASE SPECIFY MAX. GUSSET DEPTH REQUIRED
GUIDE UNIT
BY TORQUE MOTOR or AC MOTOR + INVERTER
WINDING UNIT TYPE
SINGLE/TWO STATION SURFACE WINDER or BOBBIN WINDER or
SCGC (SURFACE/CONTACT/GAP/CENTRAL) 4-IN-1 WINDER
BOBBIN CHANGE
PNEUMATIC SYSTEM or MANUAL TYPE
FILM CUTTING
PNEUMATIC SYSTEM or MANUAL TYPE
EFFECTIVE WIDTH
700 mm
1300mm
1800mm
WOUND-UP DIA
Max. 800mm or TO BE SPECIFIED BY BUYER
WINDING MOTOR
1/2HP
1HP
2HP
OPTIONS GRAVIMETRIC DOSING UNIT, AUTO HOPPER LOADER, SATURN AIRRING, PRESSURE & MELTING TEMP GAUGE, THICKNESS MEASUREMENT, AUTO THICKNESS CONTROL,EXTRUSION CONTROL,WIDTH CONTROLLER,INTERNAL BUBBLE COOLING(IBC), VERTICAL TYPE OSCILLATING TAKE UP UNIT, CORONA TREATER, HEAT-SLITTING UNIT,
6” AIR SHAFTS, EDGE POSITION CONTROL (EPC), CENTER POSITION CONTROL (CPC), AUTO. TENSION CONTROL, HYDRAULIC UNLOADING UNIT, AIR CHILLING SYSTEM ….etc.

REMARKS Final specifications of the co-extrusion machine depend on the film application, material to be used, accepted thickness tolerance, and your special requirements.
