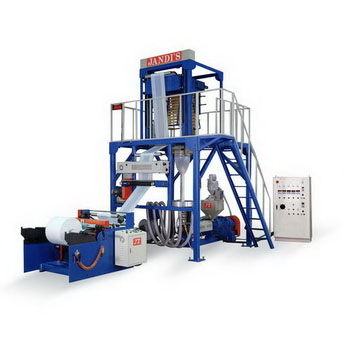

HDPE Super High Speed Inflation Machine GF-H45ES

gf-h45es


Specifications

GF-H45ES
  MODEL GF-H45ES GF-H55ES GF-H65ES
FEATURE MAX. FILM WIDTH 700 mm 1000 mm 1200 mm
MAX. CAPACITY 80 KG/HR 120 KG/HR 160 KG/HR
EXTRUDER SCREW DIAMETER 45 mm 55 mm 65 mm
DRIVING MOTOR 30 HP 50 HP 75 HP
BLOWN FILM DIES 60/90 mm 90/120 mm 120/150 mm
CONTROL PANEL TEMPERATURE CONTROL 5 ZONES 6 ZONES 6 ZONES
TAKE-UP UNIT TYPE TOWER FIXED TYPE
ROLLER WIDTH 800 mm 1100 mm 1300 mm
TAKE-UP SPEED Max. 120 M/Min
WINDING UNIT TYPE SINGLE STATION, SURFACE FRICTION TYPE
EFFECTIVE WIDTH 700 mm 1000 mm 1200 mm
OPTIONS AUTO LOADER, PRESSURE GAUGE, DIE ROTATING UNIT, LD/LLDPE DIE & AIR RING, STACKED AIR RING, WIDTH CONTROL, CORONA TREATER, EMBOSSING ROLLER, AIR CHILLER, VERTICAL TYPE or HORIZONTAL TYPE OSCILLATING TAKE-UP UNIT EDGE or CENTER POSITION CONTROL (EPC or CPC), MANUAL WINDER WITH AIR SHAFT, DOUBLE STATION WINDER, AUTO TENSION CONTROL, HYDRAULIC UNLOADING, HEAT-SLITTING, 2ND GUSSET UNIT, IN-LINE BAG MAKING / PRINTING MACHINE, EDGE-TRIM WINDER, EDGE-TRIM ON-LINE RE-USE SYSTEM
