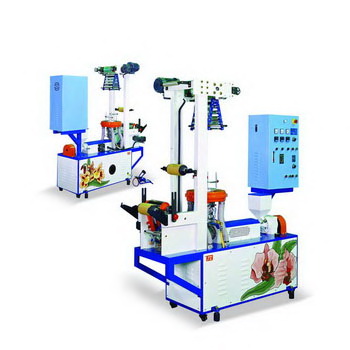

Tiny Inflation Machine
TINY-25
Specifications
MODEL
TINY-25
The add to cart button will appear once you select the values above
Send Inquiry
MODEL
TINY-25
TINY-28
GF-HMM28
FEATURE
MATERIAL TO BE USED
HD/LD/LLDPE RESIN
APPLICATION
LAB USE & COLOR TESTING
SMALL & THIN FILM
MAX. FILM WIDTH
120 mm
200 mm
350 mm
MAX. EXTRUSION OUTPUT
5 KG/HR
8 KG/HR
16 KG/HR
EXTRUDER
SCREW DIAMETER
25 mm
28 mm
32 mm
BLOWN FILM DIES
30 mm
40 mm
50 mm
CONTROL
PANEL
TEMPERATURE CONTROL
2 ZONES
3 ZONES
3 ZONES
TAKE-UP UNIT
ROLLER WIDTH
200 mm
300 mm
400 mm
WINDING UNIT
TYPE
SINGLE STATION, SURFACE FRICTION TYPE
EFFECTIVE WIDTH
135 mm
200 mm
350 mm
Specifications of the machine could be changed according to your requirements.
