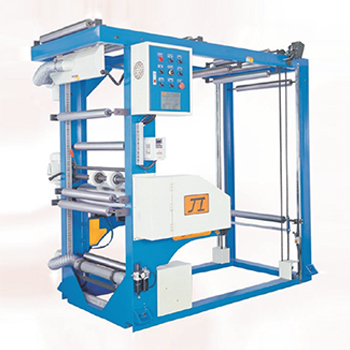

In-Line Printing Machine GF-E1-A

gf-e1-a


GF-E1-A
MODEL GF-E1
GF-E1-D
GF-E2
GF-E2-D
GF-E4
GF-E4-D
GF-E6
GF-E6-D
MODEL OF MACHINE GF - E1-60A GF - E2-60 GF - E4-60 GF - E6-60
GF - E1-80 A GF - E2-80 GF - E4-80 GF - E6-80
GF - E1-100 A GF - E2-100 GF - E4-100 GF - E6-100
GF - E1-120 A GF - E2-120 GF - E4-120 GF - E6-120
GF - E1-150 A GF - E2-150 GF - E4-150 GF - E6-150
PRINTING COLOR 1-COLOR 2-COLOR 4-COLOR 6-COLOR
PRINTING POSSIBILITY 1+0 2+0, 1+1 4+0, 3+1, 2+2 6+0, 5+1,4+2, 3+3
PRINTING WIDTH 600 mm / 800 mm / 1000 mm / 1200 mm / 1500 mm
PRINTING LENGTH
S TYPE : 10” – 35” ; E TYPE : 9” – 40”
PRINTING SPEED
Stack type : Max. 80 M/min (Single Face) ; Max. 60 M/Min (Double Face)
Doctor Blade type : Max. 120 M/Min (Single Face) ; Max. 100 M/Min (Double Face)
PRINTING CYLINDER STANDARD 20” (508 mm) or To be Specified by Buyer
ANILOX ROLLER 250 PLI (Stack type : Hard Chrome plated ; Doctor Blade Type : Ceramic)
CYLINDER UP/DOWN
PNEUMATIC SYSTEM
COLOR REGISTRATION
BY PUSH BUTTON
DRYING SYSTEM
HOT AIR BOX
UNWIND & REWIND
1-STATION UNWIND & 1-STATION REWIND
OPTIONS Ink Pump, Additional Printing Cylinders, Doctor Blade, Auto Tension Control, EPC
Double Unwind & Double Rewind, Hydraulic System for Cylinder Up/Down … etc.
* Details are available with quotation, specifications could be changed upon request.
