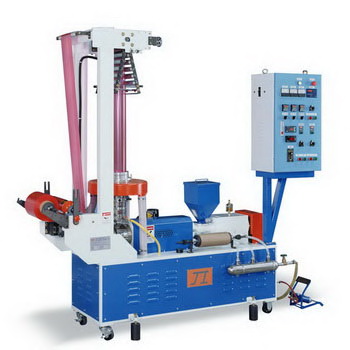

Tiny Inflation Machine TINY-28

tiny-28


TINY-28
  MODEL TINY-25 TINY-28 GF-HMM28
FEATURE MATERIAL TO BE USED HD/LD/LLDPE RESIN
APPLICATION LAB USE & COLOR TESTING SMALL & THIN FILM
MAX. FILM WIDTH 120 mm 200 mm 350 mm
MAX. EXTRUSION OUTPUT 5 KG/HR 8 KG/HR 16 KG/HR
EXTRUDER SCREW DIAMETER 25 mm 28 mm 32 mm
BLOWN FILM DIES 30 mm 40 mm 50 mm
CONTROLPANEL TEMPERATURE CONTROL 2 ZONES 3 ZONES 3 ZONES
TAKE-UP UNIT ROLLER WIDTH 200 mm 300 mm 400 mm
WINDING UNIT TYPE SINGLE STATION, SURFACE FRICTION TYPE
EFFECTIVE WIDTH 135 mm 200 mm 350 mm
Specifications of the machine could be changed according to your requirements.
