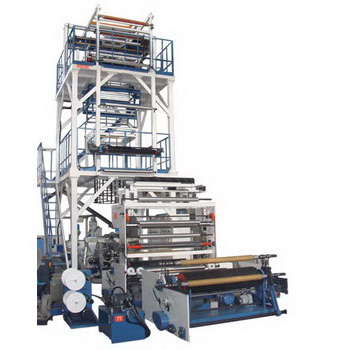

3 Layer Co-Extrusion Inflation Machine GF-E3C-45-65-45

gf-e3c-45-65-45


GF-E3C-45-65-45
video

SPECIFICATIONS : A-B-C 3 LAYER CO-EXTRUSION FILM INFLATION MACHINE



MODEL

GF-E3C-45-55-45

GF-E3C-45-65-45

GF-E3C-50-65-50

GF-E3C-55-65-55

GF-E3C-65-85-65

FEATURE

MATERIAL TO BE USED

LDPE / LLDPE / mLLDPE / HDPE / EVA / PP

MAX. FILM WIDTH

1000mm

1200mm

1500mm

1800mm

2400mm

FILM THICKNESS

0.020 ~ 0.20mm

0.02 ~ 0.20mm

0.02 ~ 0.20mm

0.02 ~ 0.20mm

0.03mm ~ 0.20mm

LAYER RATIO

1:1:1 TO 1:3:1

1:1:1 TO 1:3:1

1:1:1 TO 1:3:1

1:1:1 TO 1:3:1

1:1:1 TO 1:3:1

MAX. EXTRUSION CAPACITY

120kg/hr for 1:1:1
160kg/hr for 1:2:1
133kg/hr for 1:3:1

120kg/hr for 1:1:1
160kg/hr for 1:2:1
200kg/hr for 1:3:1

180kg/hr for 1:1:1
240kg/hr for 1:2:1
233kg/hr for 1:3:1

240kg/hr for 1:1:1
280kg/hr for 1:2:1
233kg/hr for 1:3:1

420kg/hr for 1:1:1
400kg/hr for 1:2:1
350kg/hr for 1:3:1

REAL PRODUCTION OUTPUT

REAL PRODUCTION OUTPUT DEPENDS ON THE MATERIAL, FILM SIZE, OPERATION CONDITIONS, SKILL & EXPERIENCE

EXTRUDER
(THREE SETS)

SCREW DIAMETER


45mm x 2
55mm x 1

45mm x 2
65mm x 1

50mm x 2
65mm x 1

55mm x 2
65mm x 2

65mm x 2
85mm x 1

SCREW L/D RATIO

30:1

30:1

30:1

30:1

30:1

DRIVING MOTOR

20HP X 2
40HP X 1

20 HP X 2
60 HP X 1

30HP X 2
60HP X 1

40 HP X 2
75 HP X 1

60HP x 2
100HP x 1

BLOWN FILM DIES

ψ200mm

ψ250mm

ψ300mm

ψ375mm

ψ450mm

CONTROL PANEL

TYPE

INDEPENDENT TYPE SWITCH BOARD (BOX)

TEMPERATURE CONTROLLER

PID TEMPERATURE CONTROLLERS, COLD-START PROTECTION

COOLING UNIT

TYPE

EXTERNAL AIR COOLING TYPE, BY DUALLIP AIR RING

AIR BLOWER

7.5HP

10HP

15HP

15HP

20HP

TAKE-UP UNIT

FIXED TOWER, HEIGHT

7 M

8 M

10 M

12 M

14 M

OSCILLATING HAUL-OFF

HORIZONTAL TYPE, SITTING ON SLEWING RING BEARING, OSCILLATING IN NEARLY 360°

TAKE UP ROLLER

1100mm

1300mm

1600mm

1900mm

1900mm

TAKE UP MOTOR

1HP

1HP

2HP

3HP

5HP

TAKE-UP SPEED

MAX. 60M/min or TO BE SPECIFIED BY BUYER

BUBBLE GUIDE

CAGE TYPE, BY MANUAL or MOTOR DRIVE

STEADY PLATE

MANUAL or MOTOR DRIVEN TYPE , MADE OF ALUMINUM ROLLERS

GUSSET BOARD

OPTIONS, PLEASE SPECIFY MAX. GUSSET DEPTH REQUIRED

450mm DEPTH

GUIDE UNIT

BY TORQUE MOTOR or AC MOTOR + INVERTER

WINDING UNIT

TYPE

SINGLE/TWO STATION SURFACE WINDER or BOBBIN WINDER or SCGC (SURFACE/CONTACT/GAP/CENTRAL) 4-IN-1 WINDER

BOBBIN CHANGE / FILM CUTTING

PNEUMATIC SYSTEM or MANUAL TYPE

EFFECTIVE WIDTH

1100mm

1200mm

1500mm

1800mm

1800mm

WOUND-UP DIAMETER

Max. 800mm or TO BE SPECIFIED BY BUYER

WINDING MOTOR

1HP

1HP

2HP

2HP

5HP

OPTIONS

GRAVIMETRIC DOSING UNIT, AUTO HOPPER LOADER, SATURN AIRRING, PRESSURE & MELTING TEMP GAUGE, THICKNESS MEASUREMENT, EXTRUSION CONTROL
WIDTH CONTROLLER,INTERNAL BUBBLE COOLING(IBC), VERTICAL TYPE OSCILLATING TAKE UP UNIT, CORONA TREATER, HEAT-SLITTING UNIT, 6” AIR SHAFTS,
EDGE POSITION CONTROL (EPC), CENTER POSITION CONTROL(CPC), AUTO. TENSION CONTROL, HYDRAULIC UNLOADING UNIT, AIR CHILLING SYSTEM ….etc.

REMARKS

* Final specifications of the co-extrusion machine depend on the film application, material to be used, accepted thickness tolerance, and your special requirements.
