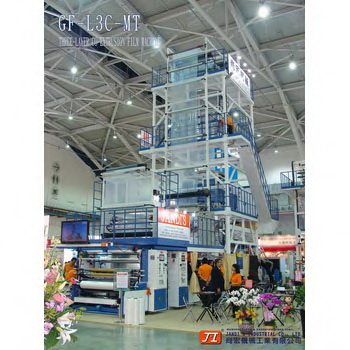

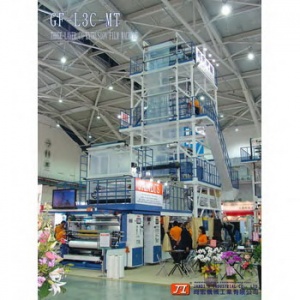

| A-B-C 3 LAYER CO-EXTRUSION FILM INFLATION MACHINE |
| |
MODEL |
GF-L3C-MT-1800 |
| FEATURE |
MATERIAL TO BE USED |
LDPE / LLDPE / mLLDPE / HDPE / EVA / PP
|
| MAX. FILM WIDTH |
FLAT FILM 1800mm ; WITH GUSSET 2500mm (5000mm OPEN WIDTH)
|
| FILM THICKNESS |
0.020 ~ 0.20mm (THINNER or THICKER GAUGE REQUIRED, TO BE SPECIFIED BY BUYER)
|
| LAYER RATIO |
1:1:1 TO 1:3:1
|
| EXTRUSION OUTPUT |
Max. 650kg/hr
|
| MAX. PRODUCTION CAPACITY |
550kg/hr for 1:1:1
480kg/hr for 1:2:1
400kg/hr for 1:3:1
|
| REAL PRODUCTION OUTPUT |
REAL PRODUCTION OUTPUT DEPENDS ON THE MATERIAL, FILM SIZE, OPERATION CONDITIONS, SKILL & EXPERIENCE
|
| THICKNESS TOLERANCE |
+/- 3 to +/- 10%
Depends on the material compound, film thickness & operation conditions
|
EXTRUDER
(THREE SETS)
|
SCREW DIAMETER
|
75mm x 2
85mm x 1
|
| SCREW L/D RATIO |
30:1
|
| DRIVING MOTOR |
100HP X 2, INVERTER CONTROL
125HP X 1, INVERTER CONTROL
|
| EXTRUSION CAPACITY |
75mm : Max. 200kg/hr
85mm : Max. 250kg/hr
|
| CO-EXTRUSION DIES |
ψ400mm (or to be specified by buyer), EUROPEAN DESIGN
|
CONTROL PANEL
|
TYPE |
INDEPENDENT TYPE SWITCH BOARD (BOX), CE STANDARD
|
| TEMP. CONTROL |
PID TEMPERATURE CONTROLLERS, COLD-START PROTECTION
|
| COOLING UNIT |
EXTERNAL COOLING |
FULL-AUTOMATIC THICKNESS CONTROL, EUROPEAN DESIGNED FLYER AIR RING
EUROPEAN HMI CONTROL
|
| INTERNAL COOLING |
EUROPEAN DESIN IBC DISKS
EUROPEAN HMI CONTROL
|
| AIR BLOWER |
20HP, INVERTER CONTROL
|
| TAKE-UP UNIT |
FIXED TOWER, HEIGHT |
12.5 M
|
| OSCILLATING HAUL-OFF |
HORIZONTAL TYPE, SITTING ON SLEWING RING BEARING,
OSCILLATING IN NEARLY 360°, HMI CONTROL
|
| TAKE UP ROLLER |
1900mm
|
| TAKE UP MOTOR |
3HP, INVERTER CONTROL
|
| TAKE-UP SPEED |
MAX. 60M/min or TO BE SPECIFIED BY BUYER
|
| BUBBLE GUIDE |
CAGE TYPE, UP/DOWN BY MOTOR DRIVEN
OPEN/COSE BY MOTOR DRIVEN, AUTO-ADJUST BY WIDTH CONTROL
|
| STEADY PLATE |
MOTOR DRIVEN TYPE , MADE OF ALUMINUM ROLLERS
|
| GUSSET BOARD |
450mm DEPTH, MOTOR DRIVEN
|
| GUIDE UNIT |
TWO SETS A.C. MOTOR + INVERTER
|
| WINDING UNIT |
SCGC TYPE |
SURFACE / CONTACT / GAP / CENTER, 4-IN-1, FULL-AUTOMATIC, HMI CONTROL, TWO STATION WINDER
|
| BOBBIN CHANGE |
PNEUMATIC SYSTEM
|
| FILM CUTTING |
PNEUMATIC SYSTEM
|
| EFFECTIVE WIDTH |
1800mm
|
| WOUND-UP DIAMETER |
Max. 800mm
|
| SURFACE WINDING |
2HP, INVERTER CONTROL
|
| CONTACT/GAP/CENTER WINDING |
3HP, INVERTER CONTROL, SERVO MOTOR FOR POSITIONING
|
| AIR SHAFTS |
3” x 3 PCES ON EACH WINDING STATION, TOTAL 6 PCES ;
6” AIR SHAFTS or 6” AIR CHUCKS by extra charge
|
| SIDE-OPENING |
TWO SETS, AIR BLOWING TYPE
|
| SLITTING DEVICE |
SINGLE-BLADE UNIT X 2 SETS, DOUBLE-BLADE UNIT x 2 SETS
|
| TENSION CONTROL |
AUTOMATIC TYPE, WITH LOADCELLS
|
| UNLOADING UNIT |
HYDRAULIC SYSTEM, ONE ON EACH SIDE
|
| OTHERS TO BE INCLUDED |
- 4-COMPONENTS GRAVIMETRIC DOSING UNIT x 3 SETS
- EXTRUSION CONTROL (YILED & GRAM PER METER CONTROL)
- 4-IN-1 MATERIAL AUTO LOADING SYSTEM* 3 SETS
- PRESSURE & MELTING TEMP. GAUGE x 3 SETS
- AUTO FILM GAUGING SYSTEM WITH OSCILATING RING TO WORK WITH AUTO AIR RING
- AUTOMATIC WIDTH CONTROL
- MONITORING & SUPERVISING SYSTEM, WITH 15” HMI SCREEN, TO CONTROL MATERIAL RECIPES / PRODUCTION OUTPUT / FILM WIDTH / FILM THICKNESS / IBC.
- EDGE POSITION CONTROL (EPC)
- AIR CHILLING SYSTEM, WATER COOLING TYPE (WITH COOLING TOWER & WATER PUMP)
- EDGE-TRIM WINDER, 2-SPINDLE TYPE |
| OPTIONS |
5.0 KW CORONA TREATER, HEAT-SLITTING UNIT, 6” AIR SHAFTS or 6” AIR CHUCKS, CENTER POSITION CONTROL(CPC), AIR COOLING TYPE AIR CHILLER ….etc. |
| REMARKS |
* Final specifications of the co-extrusion machine depend on the film application, material to be used, accepted thickness tolerance, and your special requirements. |
