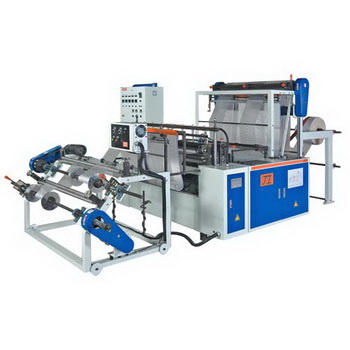

Bag On Roll Making Machine GF-R1000/SV

gf-r1000-sv


GF-R1000/SV

Finished Products

Bag-on-roll ( Find machine from bag )

  • no 32 1955258762
  • no 33 1338197807
no 32 1955258762 no 33 1338197807
SERVO DRIVE SEMI AUTOMATIC BAG ON ROLL MAKING MACHINE
MODEL GF-R611E/SV GF-R811E/SV GF-R1011E/SV GF-R812E/SV GF-R1012E/SV GF-R1212E/SV
MAX. CUTTING WIDTH 600 mm x 1 line 800 mm x 1 line 1000 mm x 1 line 400 mm x 2 lines
800 mm x 1 line
500 mm x 2 lines 600 mm x 2 lines
MAX. CUTTING LENGTH 1000 mm or LONGER LENGTH IS AVAILABLE ON YOUR REQUEST (OPTION)
MAX. PRODUCTION 120 pcs/min 120 pcs/min 100 pcs/min 120 pcs/min 100 pcs/min 80 pcs/min
SEALING KNIFE WITH TENSION SEALING TYPE
PERFORATED KNIFE TEETH KNIFE or BAND SAW
SEALING BASE SILICON ROLLER
TEMPERATURE CONTROLLER 1 SET
PRINTING SCANNER 1 SET
Specifications of the machine could be changed according to your requirements.
