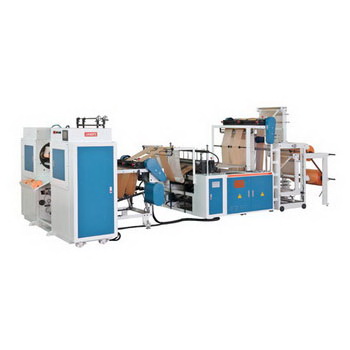

Bag On Roll Making Machine GF-R812E/SVA

gf-r812e-sva


Specifications

GF-R812E/SVA

Finished Products

Bag-on-roll ( Find machine from bag )

no 30 1090105007
no 31 1518014808
SERVO DRIVE FULLY AUTOMATIC BAG ON ROLL MAKING MACHINE
MODEL GF-R612E/SVA GF-R812E/SVA GFR1012E/SVA
MAX. UNWINDING WIDTH
(WITH FOLDS)		 300 mm x 2 lines
600 mm x 1 line		 400 mm x 2 lines
800 mm x 1 line		 500 mm x 2 lines
1000 mm x 1 line
MAX. UNWINDING WIDTH
(NO FOLDS)		 250 mm x 2 lines
500 mm x 1 line
FOLDING DEVICE 2 SETS TRIANGLE FOLDING DEVICES for 1 or 2 lines PRODUCTION
MAX. BAG LENGTH 1500 mm or LONGER LENGTH IS AVAILABLE ON YOUR REQUEST (OPTION)
MAX. PRODUCTION 120 pcs/min 100 pcs/min 80 pcs/min
SEALING KNIFE TENSIONLESS SEALING TYPE
PERFORATED KNIFE TEETH KNIFE or BAND SAW
SEALING BASE SILICON STRIP
