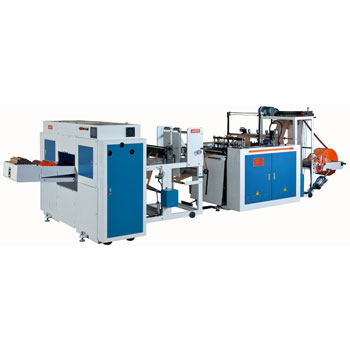

Bag On Roll Making Machine GF-TBR601/SVA

gf-tbr601-sva


Specifications

GF-TBR601/SVA

Finished Products

Bag-on-roll ( Find machine from bag )

  • no 34 1722141717
FULLY AUTOMATIC T-SHIRT BAG/FLAT BAG/S-CUT ON ROLL MAHING MACHINE
MODEL GF-TBR601E/SV
TYPE BAG ON ROLL FLAT / T-SHIRT BAG S-CUT
MAX. UNWINDING WIDTH 500 mm 250 mm
MAX. PERFORATED LENGTH 800 mm or LONGER LENGTH IS AVAILABLE ON YOUR REQUEST (OPTION)
MAX. PRODUCTION 200 pcs/min 100 cut/min (1 cut / 2 bags)
PUNCHING UNIT PUNCHING KNIFE MOULD WITH HEATER, WITH WASTE BLOWER
SEALING KNIFE SINGLE + DOUBLE SEALING
PERFORATED KNIFE BAND SAW
SEALING BASE FLAT BASE
Specifications of the machine could be changed according to your requirements.
