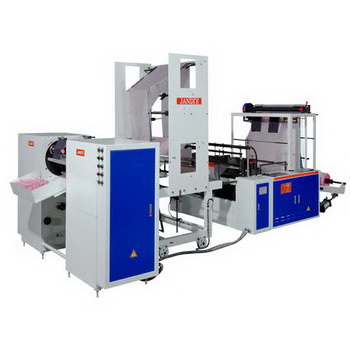

Bag On Roll Making Machine GF-R1011E/SVA

gf-r1011e-sva


Specifications

GF-R1011E/SVA

Finished Products

Bag-on-roll ( Find machine from bag )

no 30 1090105007
no 31 1518014808
no 32 1955258762
no 33 1338197807
no 30 1090105007 no 31 1518014808 no 32 1955258762 no 33 1338197807
SERVO FULLY AUTOMATIC BAG ON ROLL MAKING MACHINE
MODEL GF-R811E/SVA GF-R1011E/SVA GF-R1211E/SVA GF-R812E/SVA GF-R1012E/SVA GF-R1212E/SVA
MAX. UNWINDING WIDTH 800 mm x 1line 1000 mm x 1line 1200 mm x 1line 250 mm x 2 lines
800 mm x 1 line		 250 mm x 2 lines
1000 mm x 1 line		 250 mm x 2 lines
1200 mm x 1 line
MAX. PERFORATED LENGTH 1500 mm or LONGER LENGTH IS AVAILABLE ON YOUR REQUEST (OPTION)
FILM THICKNESS 0.009 - 0.12 mm
MAX. PRODUCTION 120 pcs/min 100 pcs/min 90 pcs/min 120 pcs/min 100 pcs/min 90 pcs/min
SEALING KNIFE WITH TENSION SEALING TYPE
PERFORATED KINFE TEETH KNIFE or BAND SAW
SEALING BASE SILICON ROLLER
TEMPRATURE CONTROLLER 1 SET
